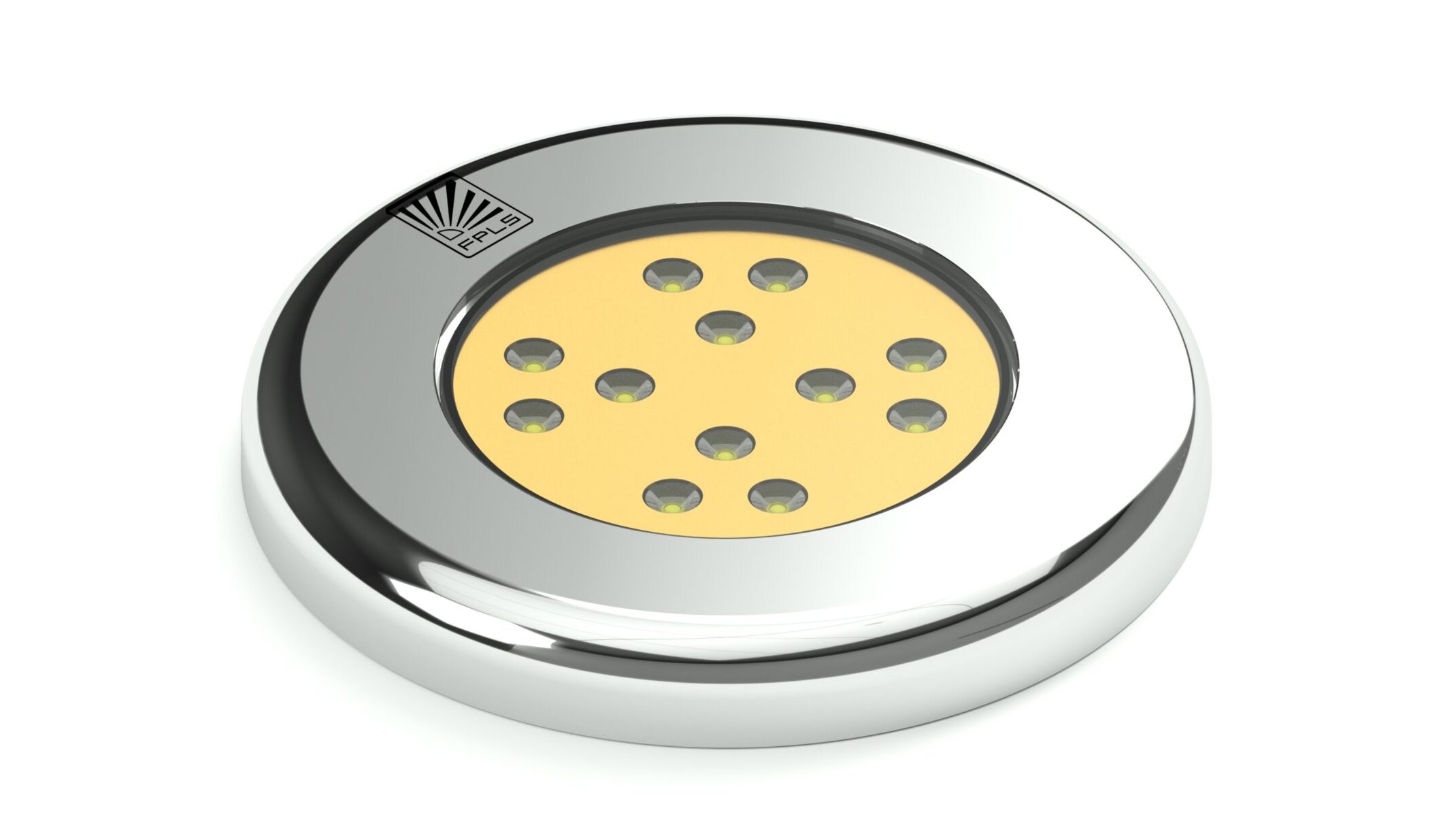

Gamma 1200

DESCRIPTION

  • 12-24 VDC / 70W / 7500 lm white (5500K)
  • 12 High Power LEDs (Made in USA by Cree)
  • Reflectors/Lens inside
  • AISI 316Ti Stainless Steel compact construction body
  • High precision CNC machined
  • Reverse polarity protection
  • 100% repairable
  • Super polish finish ( mirror like )
  • Polycarbonate glass
  • Polished bronze plate LED cover
  • Hydrocooling technology
  • Thermal protection
  • CE / IP68 / IP69K / IK10 / LVD / EMC
  • Maze: 2.5 kg

TECHNICAL INFORMATION

CONSTRUCTION BODY

Material:                                  stainless steel 316Ti (full CNC constraction body)
Surface:                                   polish finish
Fixation:                                   6xM6 316 stainless steel bolts with 316 nuts

0 .0 W
Power consumption

LED DETAILS

Amount of LEDs:                   12 high power LEDs  (made in USA by Cree)
Lens:                                         reflectors standard 80° (or 26°/45° degrees by reqest), oval
LED drive:                                PWM control  (dimmable)
Operating temperature:     85°C max
Lifespan:                                  unlimited floor life at  ≤ 30°C / 85% RH
Installation:                             wall mounted
Shades:                                     5500K
Color:                                         RGB

Power efficiency
95%
Brightness
95%

ELECTRICAL

Power consumption:           70.0 W

Voltage:                                    12-24 VDC  (10-30V operating range)

Cable:                                        1.0 meters HO7RN-F standard
                                                    (or custom length by request)

Durability
95%
Stainless steel quality
100%

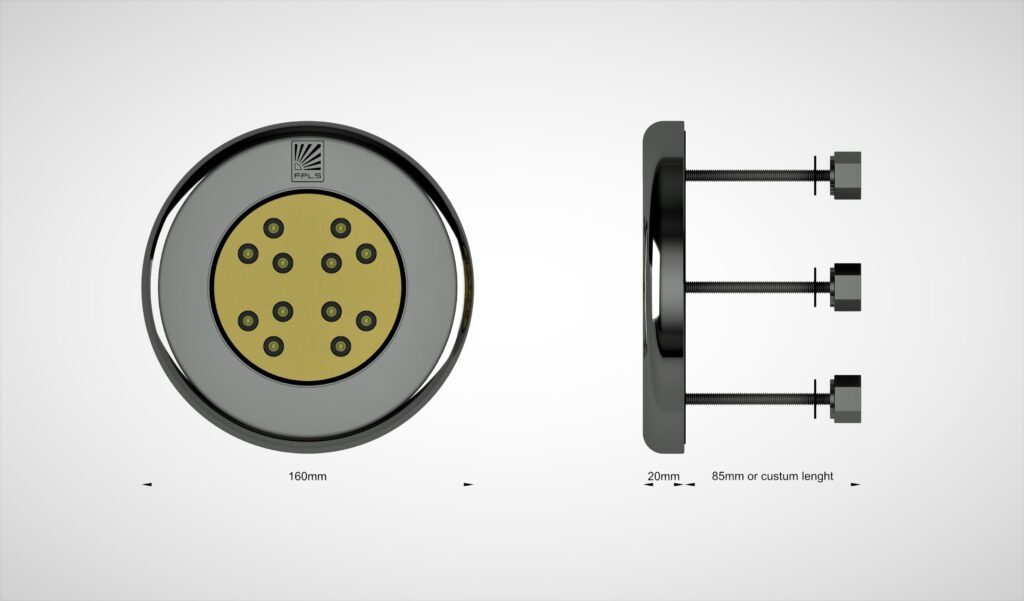

DIMENSIONS
